Stainless Steel 304 316 Wedge Wire Strainer Water Division Filter
Nozzle
Materials:
The Stainless Steel is a widely used material:food,drinking
water,chemical,etc.The chemical characteristic is stable.The
Stainless Steel products is resistance to abbrosion and
corrosion,and high rigidity.The Wedge wire strainer is consisted by
V-shape wire and support.It has many kinds of workmanship.
1.The support is inside and it is a rod like.The V-shape wire is
screwing on the rods and welded.
2.The support is outside and rod.The wire is inside and welded.
3.The support is inside and it is circular.The V-shape wire is rod
outsid.
4.The support is outside and it is circular.The V-shape wire is
inside.

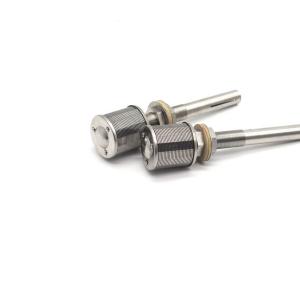

The nozzle is one of the wedge wire strainer branches.It is for
water filtration.It has all of the wedge wire strainer's
advantage.The end of the nozzle is screw thread.It is easy to be
removed and installed to maintenance,cleaning and replaced.Some
kinds of nozzles have the flanges.The work parts is connected with
the main pipe with flanges. If the parts is damaged and need to be
replace.just remove the damaged ones.So it is more less cost and
save the material.
Characteristic:
1. Safety for food and drinking water.
2.Chemical stability
3.Resistance to corrosion and abrasion
4High strength and rigidity
5.Long work time
6.Easy to be washed and cleaned
7.Save time and money.
8.The number of branch is customized.
| ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area | ||||||||
