| Brand Name : | STD Filter |
| Model Number : | STD SBS-010 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |
Introduction:

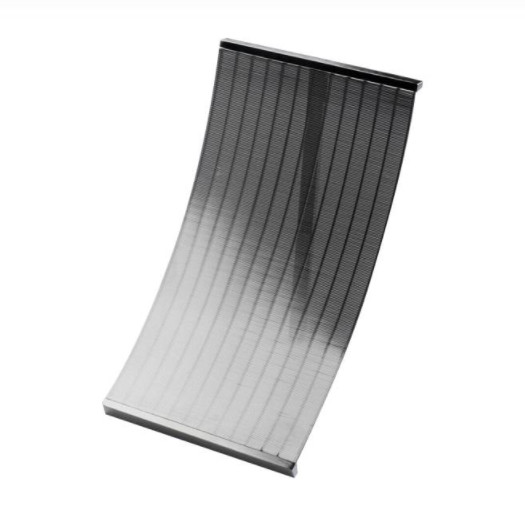

The wedge v-type arc screen curved sieve plate is ideal for glue
application and dehydration applications, removing solids from the
liquid, or in the case of solid / solid separation of dr feed.
Type Wedge v curved screening plates can be made of various widths,
arc length, aperture or wedge filament to accommodate flow and
material separation, although most applications require static
screening, "cross flow", "flow" and "vibrating" screening bends can
also be made.
| Nominal diameter(in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
Characteristics of a wedge-curved screen plate used for
aquaculture:
Use of wedge arc mesh curved mesh panels for aquaculture:
Bend screens are commonly used in food processing and wet corn
mills.During wet grinding, CP screen precision made 120 Degree
DSM.The screen, like the ordinary curved screen, is simple in
shape, but opens very thin, generally 75 um and 100 um
Specification materials of wedge-shaped v-type curved screen plate for aquaculture:
The ss304, SS304L, SS316, SS316L, SS321, duplex, Haralloy et al
Length range: 6,000 m m
Width range: 6,000 m m
Slot range: 20 micron ~ 3,000 microns (tolerance: + -5 micron)
Wedge wire: 0.5x1,50.75x1.51x21.5x2.52x32x43x5
Support bar: 1.5x2.52x31.5x2.52x31.5*2.52x32x33 * 53x53x54 * 65 * 8
Angle 90,120,140,150,160, etc
Arc height10mm 15 mm 20 mm.At 50mm, or depending on the size of the
screen pane, select an unframed or "L" box, a normal box, or a 5 *
10mm box upon request.
The Advantages:
1.No need power to run it.
2.Maximazing work face.
3.Not easily to be blocked.
4.Less cost to maintance and run.
5.Environmental friendly.
Application:
Packages
